10 Bit 3G HD SD-SDI Optical Micro Extender With SMB Connector

Name: 10 Bit 3G HD SDSDI Optical Micro Extender With SMB Connector
Brand: E-link
Price: 1 USD

Quality 10 Bit 3G HD SD-SDI Optical Micro Extender With SMB Connector wholesale

Brand Name : E-link

Model Number : LNK-M3G-SMB1V-20

Certification : CE FCC RoHS

Place of Origin : Guangdong

MOQ : 1

Payment Terms : Western Union, MoneyGram, T/T, PayPal

Supply Ability : 10000pcs/Month

Delivery Time : 3-7 working days

Packaging Details : Standard export package

Item Name : HD-SDI to Fiber Converter

Power adaptor : DC 5V

Signal standard : SD-SDI, HD-SDI, 3G-SDI

Resolution : 10 Bit

Signal level : <380mVp-p

Impedance : 75Ω

Connector : SMB

Standard SM wavelength : 1310nm, 1550nm

Dimensions (LxWxH) : 68 x 21 x 20 mm

Weight : 100g/pair

Contact Now

3G/HD/SD-SDI Optical Micro-Extender with SMB Connector

Model: LNK-M3G-SMB1V-20

Overview

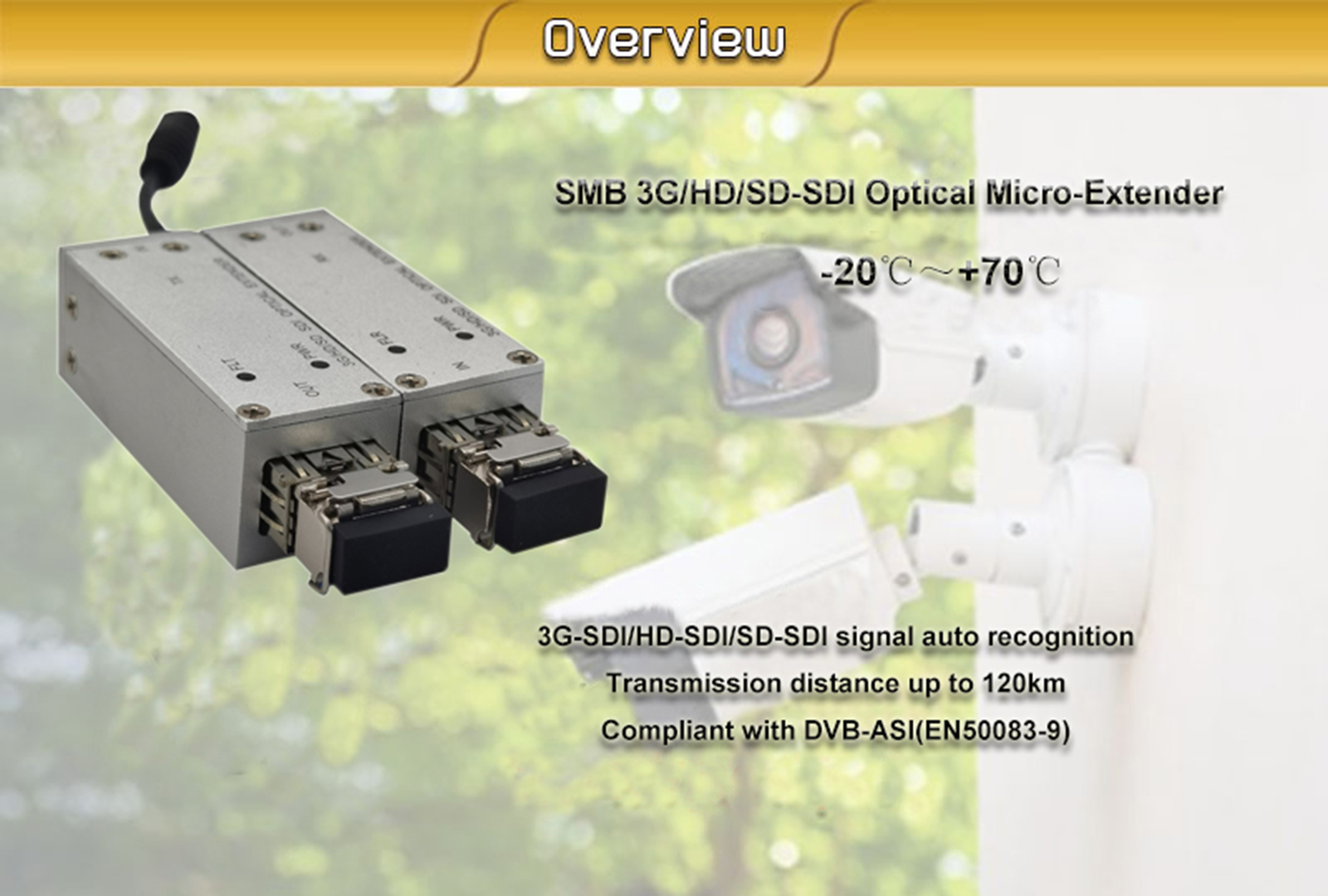

10 Bit 3G HD SD-SDI Optical Micro Extender With SMB Connector

LNK-M3G-SMB1V-20 Series 3G-SDI/HD-SDI/SD-SDI micro extender fiber optic transmission system that transmits one 3G-SDI, HD-SDI, SD-SDI high definition digital video or one DVB-ASI stream through one single mode or multimode fiber supporting SMPTE424N, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI) standards. With its advanced digital fiber optic transmission technology, there are no adjustments necessary, simple to set up and easy to operate. The SDI micro extender series uses 5V power supply with low power consumption.

Features

10 Bit 3G HD SD-SDI Optical Micro Extender With SMB Connector

Technical Indexes

SDI Input
Video standard	SMPTE424N, SMPTE292M, SMPTE259M, SMPTE297M, SMPTE310M, SMPTE305M (SDTI)
Signal standard	SD-SDI(270Mbps), HD-SDI(1.485Gbps), 3G-SDI(2.97Gbps)
Resolution	10 Bit
Signal level	<380mVp-p
Impedance	75Ω
Connector	SMB
SDI output
Signal level	800mVp-p±10%
Rise/Fall time	<0.8ns
HD-SDI Jitter	<0.2UI(134ps)@100kHz, <1.0UI(673ps)@10Hz
SDI Jitter	<0.2UI(740ps)@10Hz, 0.2UI(740ps)@1kHz
Impedance	75Ω
Connector	SMB
Optical Interface
SFP	Simplex LC, 3,125Gbps.≤120km transmission distance
Standard SM wavelength	1310nm, 1550nm
CWDM wavelength	1270~1610nm, 20nm grid according ITU-T
Temperature range	0~70˚C
Electrical
Power	5VDC, 1A
Consumption	<5W
LED Indicator
FLT	Fiber link status (Transmitter)
FLR	Fiber link status (Receiver)
PWR	Power status
Mechanical
Dimensions (LxWxH)	68 x 21 x 20 mm
Weight	100g/pair
Casing	Aluminum Case
Mounting Options	Desktop
Environmental
Working Temperature	-20℃～+70℃
Storage Temperature	-40℃～+80℃
Working Humidity	0~95%
MTBF	≥100000 hours

Ordering Information

Item	Description
Item	Description
LNK-M3G-SMB1V-20	SMB 3G/HD/SD-SDI Optical Micro-Extender, 1310/1550nm, Simplex LC, Single Mode, 20KM including Transmitter and Receiver, used by pairs

Application

10 Bit 3G HD SD-SDI Optical Micro Extender With SMB Connector
